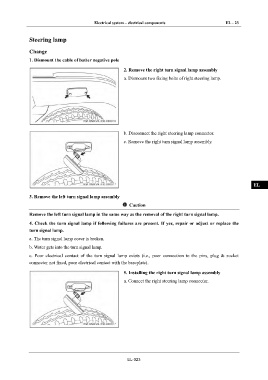

Electrical system – electrical components EL - 23
IN
Steering lamp
Change DI
1. Dismount the cable of batter negative pole
2. Remove the right turn signal lamp assembly EG
a. Dismount two fixing bolts of right steering lamp.
TR
AX
FR
b. Disconnect the right steering lamp connector.
ST
c. Remove the right turn signal lamp assembly.
BR
BW
EL
3. Remove the left turn signal lamp assembly
Caution
Remove the left turn signal lamp in the same way as the removal of the right turn signal lamp.
4. Check the turn signal lamp if following failures are present. If yes, repair or adjust or replace the
turn signal lamp.
a. The turn signal lamp cover is broken.
b. Water gets into the turn signal lamp.
c. Poor electrical contact of the turn signal lamp exists (i.e., poor connection to the pins, plug & socket
connector not fixed, poor electrical contact with the baseplate).
5. Installing the right turn signal lamp assembly
a. Connect the right steering lamp connector.
EL-023
