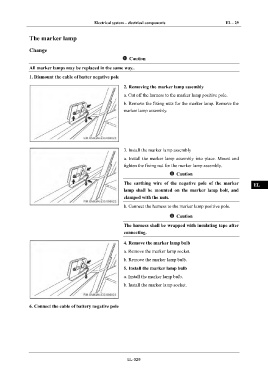

Electrical system – electrical components EL - 29

IN
The marker lamp

Change DI

Caution
All marker lamps may be replaced in the same way.. EG

1. Dismount the cable of batter negative pole
TR
2. Removing the marker lamp assembly

a. Cut off the harness to the marker lamp positive pole.
AX
b. Remove the fixing nuts for the marker lamp. Remove the
marker lamp assembly.
FR

ST

3. Install the marker lamp assembly BR
a. Install the marker lamp assembly into place. Mount and
tighten the fixing nut for the marker lamp assembly.
BW
Caution

The earthing wire of the negative pole of the marker
EL
lamp shall be mounted on the marker lamp bolt, and

clamped with the nuts.

b. Connect the harness to the marker lamp positive pole.

Caution

The harness shall be wrapped with insulating tape after
connecting.

4. Remove the marker lamp bulb
a. Remove the marker lamp socket.
b. Remove the marker lamp bulb.

5. Install the marker lamp bulb
a. Install the marker lamp bulb.
b. Install the marker lamp socket.

6. Connect the cable of battery negative pole

EL-029
