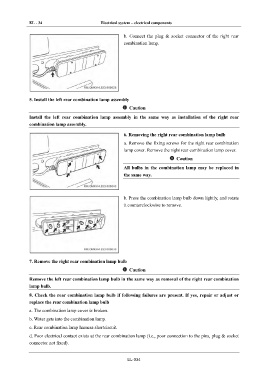

EL - 34 Electrical system – electrical components

IN b. Connect the plug & socket connector of the right rear

combination lamp.
DI

EG

TR

5. Install the left rear combination lamp assembly
AX
Caution

FR Install the left rear combination lamp assembly in the same way as installation of the right rear
combination lamp assembly.

ST 6. Removing the right rear combination lamp bulb
a. Remove the fixing screws for the right rear combination
lamp cover. Remove the right rear combination lamp cover.
BR
Caution
BW All bulbs in the combination lamp may be replaced in
the same way.

EL

b. Press the combination lamp bulb down lightly, and rotate

it counterclockwise to remove.

7. Remove the right rear combination lamp bulb
Caution

Remove the left rear combination lamp bulb in the same way as removal of the right rear combination
lamp bulb.

8. Check the rear combination lamp bulb if following failures are present. If yes, repair or adjust or
replace the rear combination lamp bulb
a. The combination lamp cover is broken.

b. Water gets into the combination lamp.
c. Rear combination lamp harness shortcircuit.
d. Poor electrical contact exists at the rear combination lamp (i.e., poor connection to the pins, plug & socket
connector not fixed).

EL-034
