P. 1441

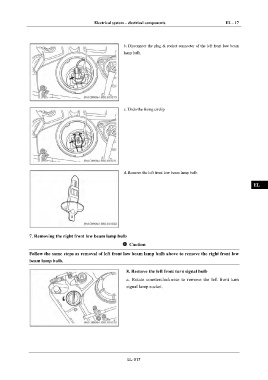

Electrical system – electrical components EL - 17
IN
b. Disconnect the plug & socket connector of the left front low beam
lamp bulb. DI
EG
TR
AX
c. Undo the fixing circlip
FR
ST
BR
BW
d. Remove the left front low beam lamp bulb.
EL
7. Removing the right front low beam lamp bulb
Caution
Follow the same steps as removal of left front low beam lamp bulb above to remove the right front low
beam lamp bulb.
8. Remove the left front turn signal bulb
a. Rotate counterclockwise to remove the left front turn
signal lamp socket.
EL-017
