Electrical system – electrical components EL - 135
IN

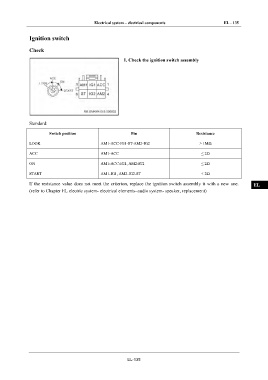

Ignition switch
Check DI
1. Check the ignition switch assembly
EG
TR
AX
FR
Standard:
Switch position Pin Resistance ST
LOOK AM1-ACC-IG1-ST-AM2-IG2 ≥ 1MΩ
BR
ACC AM1-ACC ≤ 2Ω
ON AM1-ACC-IG1, AM2-IG2 ≤ 2Ω
BW
START AM1-IG1, AM2-IG2-ST ≤ 2Ω
If the resistance value does not meet the criterion, replace the ignition switch assembly it with a new one. EL
(refer to Chapter EL electric system- electrical elements–audio system- speaker, replacement)
