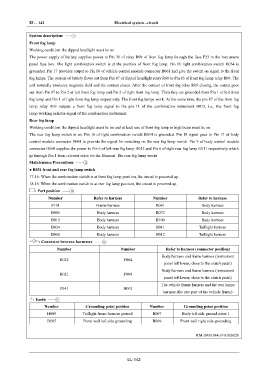

EL - 142 Electrical system –circuit

IN System description:
Front fog lamp
Working condition: the dipped headlight must be on
DI
The power supply of battery supplies power to Pin 30 of relay R09 of front fog lamp through the fuse F23 in the instrument

panel fuse box. The light combination switch is at the position of front fog lamp. Pin 16 light combination switch B034 is
EG
grounded. Pin 17 provides output to Pin 18 of vehicle control module connector B061 and give the switch on signal to the front
fog lamps. The current of battery flows out from Pin 87 of dipped headlight relay R08 to Pin 85 of front fog lamp relay R09. The
TR coil normally produces magnetic field and the contact closes. After the contact of front fog relay R09 closing, the output goes
out from Pin 87 to Pin 2 of left front fog lamp and Pin 2 of right front fog lamp. Then they are grounded from Pin 1 of left front
fog lamp and Pin 1 of right front fog lamp respectively. The front fog lamps work. At the same time, the pin 87 of the front fog
AX
lamp relay R09 outputs a front fog lamp signal to the pin 11 of the combination instrument B015, i.e., the front fog

lamp working indictor signal of the combination instrument.
FR
Rear fog lamp
Working condition: the dipped headlight must be on and at least one of front fog lamp or high beam must be on
ST The rear fog lamp switch is on. Pin 16 of light combination switch B034 is grounded. Pin 18 signal goes to Pin 17 of body
control module connector B061 to provide the signal for switching on the rear fog lamp switch. Pin 9 of body control module

connector B060 supplies the power to Pin 6 of left rear fog lamp H012 and Pin 6 of right rear fog lamp H011 respectively which
BR
go through Pin 1 from relevant sides via the filament. The rear fog lamp works

Maintenance Precautions
BW ● B034 front and rear fog lamp switch
17-16: When the combination switch is at front fog lamp position, the circuit is powered up.

EL 18-16: When the combination switch is at rear fog lamp position, the circuit is powered up.
: Part position

Number Refer to harness Number Refer to harness

F101 Frame harness B061 Body harness

B001 Body harness B072 Body harness
B015 Body harness B100 Body harness
B034 Body harness H011 Taillight harness

B060 Body harness H012 Taillight harness
: Connector between harnesses
Number Number Refer to harness (connector position)

Body harness and frame harness (instrument
B022 F004
panel left lower, close to the clutch pedal)

Body harness and frame harness (instrument
B021 F008
panel left lower, close to the clutch pedal)
The vehicle frame harness and the rear lamps
F041 H001
harness (the rare part of the vehicle frame)
: Earth

Number Grounding point position Number Grounding point position

H009 Taillight frame harness ground B007 Body left side ground point 1

B005 Front wall left side grounding B069 Front wall right side grounding

RM.OMKM4.910.000028
