EL - 146 Electrical system –circuit

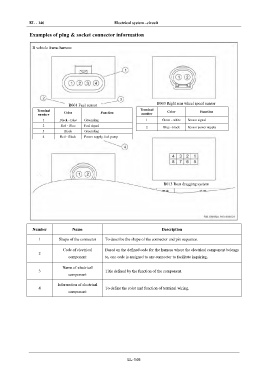

IN Examples of plug & socket connector information
B vehicle frame harness
DI
EG
TR
AX B003 Right rear wheel speed sensor
B001 Fuel sensor
Terminal Terminal Color Function
number Color Function number
FR 1 Black - Blue Grounding 1 Green - white Sensor signal
2 Red - Blue Fuel signal 2 Blue - black Sensor power supply
3 Black Grounding
ST 4 Red - Black Power supply, fuel pump
BR
BW
EL B013 Rear dragging system
Number Name Description
1 Shape of the connector To describe the shape of the connector and pin sequence.
Code of electrical Based on the defined code for the harness where the electrical component belongs
2
component to, one code is assigned to one connector to facilitate inquiring.
Name of electrical
3 Title defined by the function of the component.
component
Information of electrical
4 To define the color and function of terminal wiring.
component
EL-146
