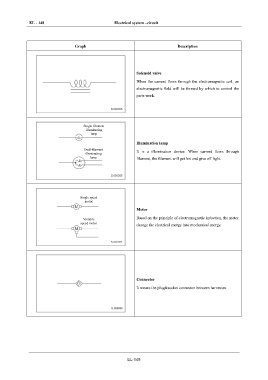

EL - 148 Electrical system –circuit
IN
Graph Description
DI
EG
Solenoid valve
When the current flows through the electromagnetic coil, an
TR
electromagnetic field will be formed by which to control the
parts work.
AX
FR
Single filament
illuminating
ST lamp
Illumination lamp
Dual-filament
BR illuminating It is a illumination device. When current flows through
lamp filament, the filament will get hot and give off light.
BW
EL
Single speed
motor
Motor
Variable Based on the principle of electromagnetic induction, the motor
speed motor
change the electrical energy into mechanical energy.
Connector
It means the plug&socket connector between harnesses.
EL-148
