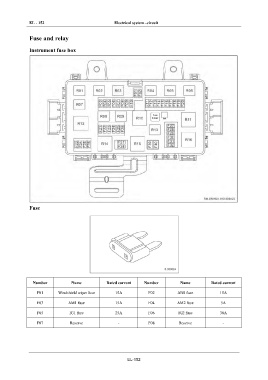

EL - 152 Electrical system –circuit
IN
Fuse and relay
DI Instrument fuse box
EG
TR
AX
Fuse
FR holder
ST
BR
BW
EL
Fuse
Number Name Rated current Number Name Rated current
F01 Windshield wiper fuse 15A F02 ABS fuse 15A
F03 AM1 fuse 15A F04 AM2 fuse 5A
F05 IG1 fuse 25A F06 IG2 fuse 30A
F07 Reserve - F08 Reserve -
