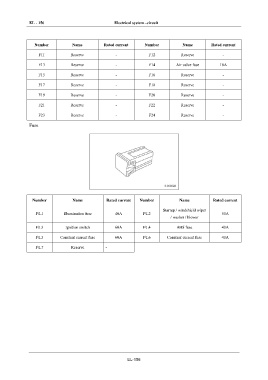

Page 1580 - Foton Workshop Manual - Auman EST-M
P. 1580
EL - 156 Electrical system –circuit
IN
Number Name Rated current Number Name Rated current
DI
F11 Reserve - F12 Reserve -
F13 Reserve - F14 Air valve fuse 10A
EG
F15 Reserve - F16 Reserve -
TR F17 Reserve - F18 Reserve -
F19 Reserve - F20 Reserve -
AX
F21 Reserve - F22 Reserve -
F23 Reserve - F24 Reserve -
FR
Fuse
ST
BR
BW
EL
Number Name Rated current Number Name Rated current
Startup / windshield wiper
F\L1 Illumination fuse 40A F\L2 50A
/ washer / blower
F\L3 Ignition switch 60A F\L4 ABS fuse 40A
F\L5 Constant current fuse 60A F\L6 Constant current fuse 40A
F\L7 Reserve -
EL-156
