EL - 160 Electrical system –circuit
IN

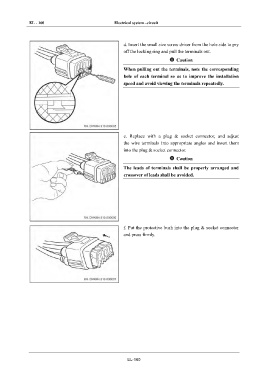

d. Insert the small size screw driver from the hole side to pry
DI off the locking ring and pull the terminals out.
Caution
EG When pulling out the terminals, note the corresponding
hole of each terminal so as to improve the installation
speed and avoid viewing the terminals repeatedly.
TR
AX
FR
ST e. Replace with a plug & socket connector, and adjust
the wire terminals into appropriate angles and insert them
into the plug & socket connector.
BR
Caution
BW The leads of terminals shall be properly arranged and
crossover of leads shall be avoided.
EL
f. Put the protective bush into the plug & socket connector
and press firmly.
EL-160
