Electrical system –circuit EL - 163
IN

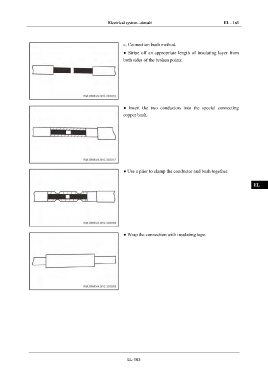

c. Connection bush method.
● Stripe off an appropriate length of insulating layer from DI
both sides of the broken points.
EG
TR
AX
● Insert the two conductors into the special connecting
copper bush.
FR
ST
BR
BW
● Use a plier to clamp the conductor and bush together.
EL
● Wrap the connection with insulating tape.
EL-163
