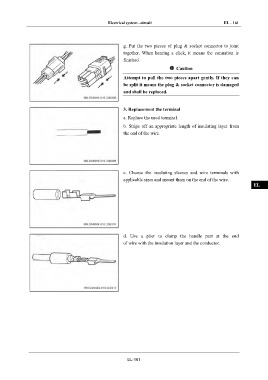

Electrical system –circuit EL - 161

IN

g. Put the two pieces of plug & socket connector to joint
together. When hearing a click, it means the connation is DI
finished.
Caution EG

Attempt to pull the two pieces apart gently. If they can
be split it means the plug & socket connector is damaged TR
and shall be replaced.
AX

3. Replacement the terminal
a. Replace the used terminal. FR
b. Stripe off an appropriate length of insulating layer from
the end of the wire.
ST

BR

BW
c. Choose the insulating sleeves and wire terminals with

applicable sizes and mount them on the end of the wire.
EL

d. Use a plier to clamp the handle part at the end
of wire with the insulation layer and the conductor.

EL-161
