Page 1579 - Foton Workshop Manual - Auman EST-M
P. 1579

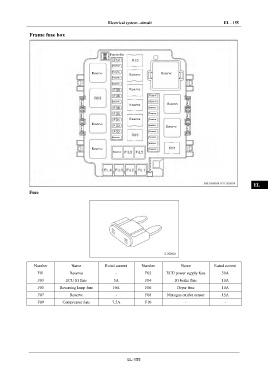

Electrical system –circuit EL - 155
Frame fuse box IN
DI
Fuse holder
Reserve
EG
Reserve Reserve Reserve
Reserve
Reserve
Reserve
TR
Reserve
Reserve
Reserve Reserve Reserve Reserve Reserve Reserve AX
Reserve
Reserve
Reserve Reserve
Reserve Reserve FR
Reserve Reserve
Reserve Reserve Reserve
Reserve
ST
Reserve Reserve
Reserve
Reserve Reserve
Reserve BR
BW
EL
Fuse
Number Name Rated current Number Name Rated current
F01 Reserve - F02 ECU power supply fuse 30A
F03 ECU IG fuse 5A F04 IG brake fuse 10A
F05 Reversing lamp fuse 10A F06 Dryer fuse 10A
F07 Reserve - F08 Nitrogen oxides sensor 15A
F09 Compressor fuse 7.5A F10 - -
EL-155
