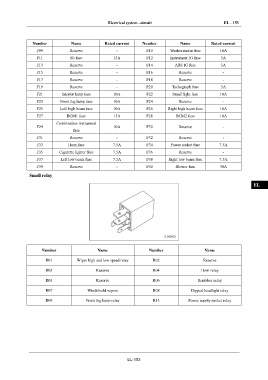

Electrical system –circuit EL - 153
IN
Number Name Rated current Number Name Rated current
F09 Reserve - F10 Washer motor fuse 10A DI
F11 IG fuse 15A F12 Instrument IG fuse 5A
F13 Reserve - F14 ABS IG fuse 5A
EG
F15 Reserve - F16 Reserve -
F17 Reserve - F18 Reserve -
TR
F19 Reserve - F20 Tachograph fuse 5A
F21 Interior lamp fuse 10A F22 Small light fuse 10A
F23 Front fog lamp fuse 10A F24 Reserve - AX
F25 Left high beam fuse 10A F26 Right high beam fuse 10A
F27 BCM1 fuse 15A F28 BCM2 fuse 10A
FR
Combination instrument
F29 10A F30 Reserve -
fuse
ST
F31 Reserve - F32 Reserve -
F33 Horn fuse 7.5A F34 Power socket fuse 7.5A
F35 Cigarette lighter fuse 7.5A F36 Reserve - BR
F37 Left low beam fuse 7.5A F38 Right low beam fuse 7.5A
F39 Reserve - F40 Blower fuse 30A
BW
Small relay
EL
Number Name Number Name
R01 Wiper high and low speed relay R02 Reserve
R03 Reserve R04 Horn relay
R05 Reserve R06 Scrubber relay
R07 Windshield wipers R08 Dipped headlight relay
R09 Front fog lamp relay R13 Power supply socket relay
