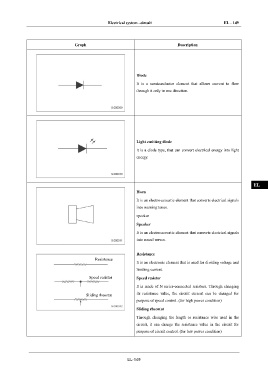

Electrical system –circuit EL - 149
IN
Graph Description
DI
EG
Diode
It is a semiconductor element that allows current to flow TR
through it only in one direction.
AX
FR
ST
Light emitting diode
It is a diode type, that can convert electrical energy into light
BR
energy.
BW
EL
Horn
It is an electro-acoustic element that converts electrical signals
into warning tones.
speaker
Speaker
It is an electro-acoustic element that converts electrical signals
into sound waves.
Resistance
Resistance
It is an electronic element that is used for dividing voltage and
limiting current.
Speed resistor Speed resistor
It is made of N series-connected resistors. Through changing
Sliding rheostat its resistance value, the circuit current can be changed for
purpose of speed control. (for high power condition)
Sliding rheostat
Through changing the length or resistance wire used in the
circuit, it can change the resistance value in the circuit for
purpose of circuit control. (for low power condition)
EL-149
