Page 1595 - Foton Workshop Manual - Auman EST-M

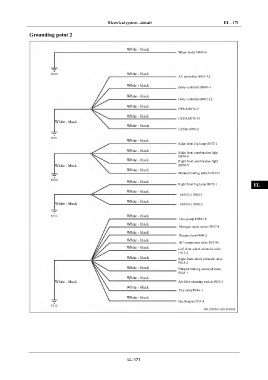

Electrical system –circuit EL - 171

Grounding point 2 IN

White - black
Wiper motor B080-6 DI

EG
White - black
AC controller B037-A2
White - black TR
Body controller B060-3

White - black
Body controller B061-12
AX
White - black
GPS A B076-9
White - black
GPS A B076-10 FR
White - black
White - black
GPS B B078-2
ST
White - black
Right front fog lamp B072-1
White - black
Right front combination light BR
B070-4
White - black Right front combination light
White - black B070-9
White - black BW
Manual braking switch B075-1

White - black
Right front fog lamp B072-1 EL
White - black

White - black
White - black

White - black
Urea pump F088-18
White - black
Nitrogen oxide sensor F057-4
White - black
Electric horn F009-2
White - black
AC compressor relay R10-86
White - black
Left front wheel solenoid valve
F017-2
White - black Right front wheel solenoid valve
F018-2
White - black Exhaust braking solenoid valve
F023-1
White - black
White - black Air filter alarming switch F025-1

White - black
Dry valve F046-1

White - black
No x Sensor F057-4

EL-171
