Electrical system –circuit EL - 175

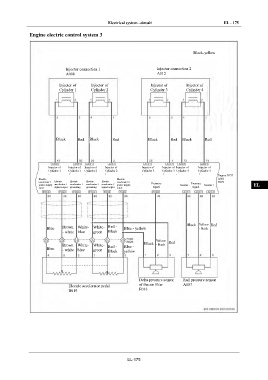

Engine electric control system 3 IN

Black-yellow DI

Injector connection 1 Injector connection 2 EG
A008 A012

Injector of Injector of Injector of Injector of TR
Cylinder 1 Cylinder 2 Cylinder 3 Cylinder 4

AX

FR

ST
Black Red Black Red Black Red Black Red

BR

Injector of Injector of Injector of Injector of Injector of Injector of Injector of Injector of BW
Cylinder 1 Cylinder 1 Cylinder 2 Cylinder 2 Cylinder 3 Cylinder 3 Cylinder 4 Cylinder 4
- + - + - + - + Engine ECU

Electric Electric A001
accelerator 1 Electric Electric Electric Electric accelerator 2 F099
power supply accelerator 1 accelerator 1 accelerator 2 accelerator 2 power supply Pressure Sensor - Pressure Sensor + EL
input signal output grounding grounding signal output input signal signal

Black Yellow Red
Blue Brown White- White- Red - Blue - yellow - black
- white blue green Black

Yellow Red
Brown White- White- Red - Blue - Black - black
Blue - white blue green Black yellow

Delta pressure sensor Rail pressure sensor
Electric accelerator pedal of the air filter A007
B019 F033

EL-175
