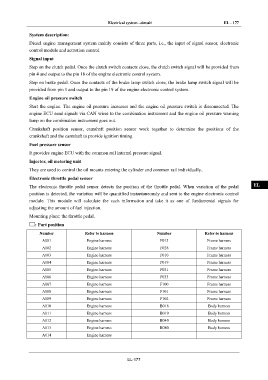

Electrical system –circuit EL - 177

System description: IN

Diesel engine management system mainly consists of three parts, i.e., the input of signal sensor, electronic
control module and actuation control. DI

Signal input
Step on the clutch pedal. Once the clutch switch contacts close, the clutch switch signal will be provided from EG
pin 4 and output to the pin 18 of the engine electronic control system.

Step on brake pedal. Once the contacts of the brake lamp switch close, the brake lamp switch signal will be
TR
provided from pin 1 and output to the pin 19 of the engine electronic control system.

Engine oil pressure switch
AX
Start the engine. The engine oil pressure increases and the engine oil pressure switch is disconnected. The

engine ECU send signals via CAN wires to the combination instrument and the engine oil pressure warning
FR
lamp on the combination instrument goes out.

Crankshaft position sensor, camshaft position sensor work together to determine the positions of the
crankshaft and the camshaft to provide ignition timing. ST

Fuel pressure sensor
It provides engine ECU with the common rail internal pressure signal. BR

Injector, oil metering unit
They are used to control the oil mounts entering the cylinder and common rail individually.. BW

Electronic throttle pedal sensor
EL
The electronic throttle pedal sensor detects the position of the throttle pedal. When variation of the pedal
position is detected, the variation will be quantified instantaneously and sent to the engine electronic control
module. This module will calculate the such information and take it as one of fundamental signals for
adjusting the amount of fuel injection.

Mounting place: the throttle pedal.

: Part position

Number Refer to harness Number Refer to harness
A001 Engine harness F013 Frame harness

A002 Engine harness F028 Frame harness

A003 Engine harness F010 Frame harness

A004 Engine harness F019 Frame harness

A005 Engine harness F021 Frame harness
A006 Engine harness F033 Frame harness
A007 Engine harness F100 Frame harness
A008 Engine harness F101 Frame harness
A009 Engine harness F102 Frame harness

A010 Engine harness B018 Body harness

A011 Engine harness B019 Body harness

A012 Engine harness B040 Body harness
A013 Engine harness B080 Body harness
A014 Engine harness

EL-177
