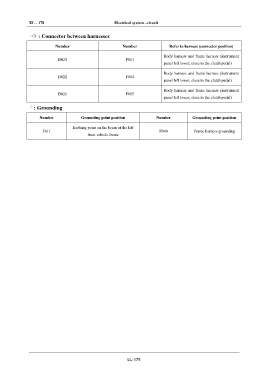

EL - 178 Electrical system –circuit
IN : Connector between harnesses
Number Number Refer to harness (connector position)
DI
Body harness and frame harness (instrument
B025 F001
panel left lower, close to the clutch pedal)
EG
Body harness and frame harness (instrument
B022 F004
panel left lower, close to the clutch pedal)
TR
Body harness and frame harness (instrument
B026 F005
panel left lower, close to the clutch pedal)
AX
: Grounding
FR Number Grounding point position Number Grounding point position
Earthing point on the beam of the left
F011 F040 Frame harness grounding
ST front vehicle frame
BR
BW
EL
EL-178
