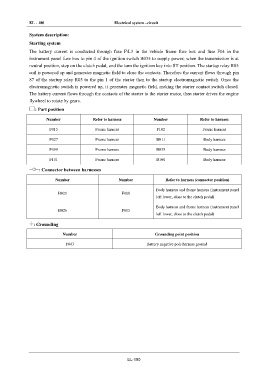

EL - 180 Electrical system –circuit

IN System description:

Starting system
DI The battery current is conducted through fuse F\L3 in the vehicle frame fuse box and fuse F04 in the
instrument panel fuse box to pin 4 of the ignition switch B035 to supply power; when the transmission is at

neutral position, step on the clutch pedal, and the turn the ignition key into ST position. The startup relay R05
EG
coil is powered up and generates magnetic field to close the contacts. Therefore the current flows through pin

87 of the startup relay R05 to the pin 1 of the starter then to the startup electromagnetic switch. Once the
TR electromagnetic switch is powered up, it generates magnetic field, making the starter contact switch closed.
The battery current flows through the contacts of the starter to the starter motor, then starter drives the engine

AX flywheel to rotate by gears.
: Part position
FR Number Refer to harness Number Refer to harness

F015 Frame harness F102 Frame harness
ST
F027 Frame harness B011 Body harness

F099 Frame harness B035 Body harness
BR
F101 Frame harness B100 Body harness
BW : Connector between harnesses

Number Number Refer to harness (connector position)
EL
Body harness and frame harness (instrument panel
B021 F008
left lower, close to the clutch pedal)

Body harness and frame harness (instrument panel
B026 F005
left lower, close to the clutch pedal)

: Grounding

Number Grounding point position
F043 Battery negative pole harness ground

EL-180
