EL - 170 Electrical system –circuit

IN

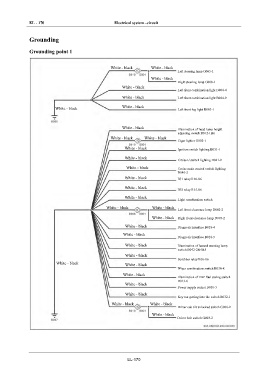

Grounding

DI Grounding point 1

EG White - black White - black
Left steering lamp G005-1
White - black
Right steering lamp G008-1
TR White - black
Left front combination light B004-4

White - black Left front combination light B004-9
AX
White - black
White - black Left front fog light B001-1
FR

White - black
Illumination of head lamp height
adjusting switch B012-1&6
ST
White - black White - black
Cigar lighter G002-1

White - black Ignition switch lighting B031-1
BR
White - black
Cruise+/-switch lighting B041-2
BW White - black Cruise main control switch lighting
B040-2
White - black IG1 relay R10-86

EL
White - black
IG2 relay R15-86

White - black
Light combination switch
White - black White - black B034-1&9&16
Left front clearance lamp D002-2
White - black Right front clearance lamp D003-2
White - black Diagnosis interface B018-4

White - black
Diagnosis interface B018-5
White - black Illumination of hazard warning lamp
switch B042-2&4&5

White - black
Scrubber relay R06-86
White - black White - black
Wiper combination switch B030-8
White - black
Illumination of EBP fuel saving switch
B013-6
White - black
Power supply socket B050-3
White - black
Key not getting into the switch B032-1
White - black White - black
Driver cab tilt unlocked switch G006-2

White - black
Driver belt switch G003-2

EL-170
