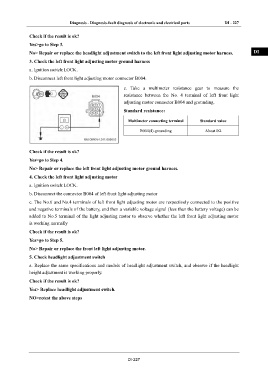

Diagnosis - Diagnosis-fault diagnosis of electronic and electrical parts DI - 227

Check if the result is ok? IN
Yes>go to Step 3.

No> Repair or replace the headlight adjustment switch to the left front light adjusting motor harness. DI
3. Check the left front light adjusting motor ground harness

a. Ignition switch:LOCK. EG
b. Disconnect left front light adjusting motor connector B004.
TR
c. Take a multimeter resistance gear to measure the

resistance between the No. 4 terminal of left front light
adjusting motor connector B004 and grounding. AX
Standard resistance:

Multimeter connecting terminal Standard value FR

B004(4)-grounding About 0Ω
ST

Check if the result is ok? BR
Yes>go to Step 4.

No> Repair or replace the left front light adjusting motor ground harness. BW
4. Check the left front light adjusting motor

a. Ignition switch:LOCK. EL
b. Disconnect the connector B004 of left front light adjusting motor

c. The No.6 and No.4 terminals of left front light adjusting motor are respectively connected to the positive
and negative terminals of the battery, and then a variable voltage signal (less than the battery voltage) can be
added to No.5 terminal of the light adjusting motor to observe whether the left front light adjusting motor
is working normally

Check if the result is ok?

Yes>go to Step 5.

No> Repair or replace the front left light adjusting motor.

5. Check headlight adjustment switch

a. Replace the same specifications and models of headlight adjustment switch, and observe if the headlight

height adjustment is working properly.

Check if the result is ok?

Yes> Replace headlight adjustment switch.

NO>retest the above steps

DI-227
