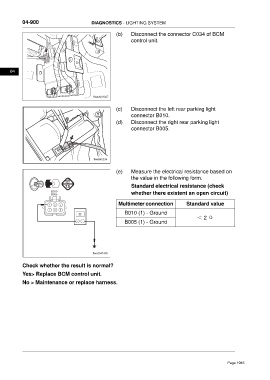

04-900                         DIAGNOSTICS - LIGHTING SYSTEM

                                                      (b)    Disconnect the connector C034 of BCM
                                                             control unit.







      04





                                           ftwxd041027

                                                      (c)    Disconnect the left rear parking light
                                                             connector B010.
                                                      (d)    Disconnect the right rear parking light
                                                             connector B005.










                                                      (e)    Measure the electrical resistance based on
                                                             the value in the following form.
                                                             Standard electrical resistance (check
                        B010
                        B005                                 whether there existent an open circuit)
                                                       Multimeter connection          Standard value

                                                          B010 (1) - Ground
                                                                                          ＜ 2 Ω
                                                          B005 (1) - Ground







                                           ftwxd041405

           Check whether the result is normal?

           Yes> Replace BCM control unit.
           No > Maintenance or replace harness.
