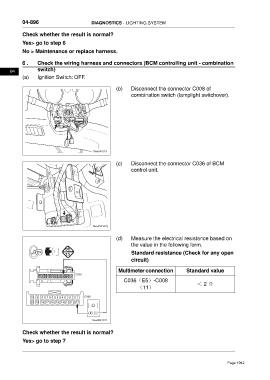

P. 1042
04-896 DIAGNOSTICS - LIGHTING SYSTEM
Check whether the result is normal?
Yes> go to step 6
No > Maintenance or replace harness.
6 . Check the wiring harness and connectors (BCM controlling unit - combination
switch)
04
(a) Ignition Switch: OFF.
(b) Disconnect the connector C008 of
combination switch (lamplight switchover).
ftwx641019
(c) Disconnect the connector C036 of BCM
control unit.
ftwxd041026
(d) Measure the electrical resistance based on
the value in the following form.
Standard resistance (Check for any open
circuit)
Multimeter connection Standard value
16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 C036
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17
C036（E5）-C008 ＜ 2 Ω
（11）
10 9 8 7 6 5 4 3 2 1 C008
20 19 18 17 16 15 14 13 12 11
ftwxd041011
Check whether the result is normal?
Yes> go to step 7
