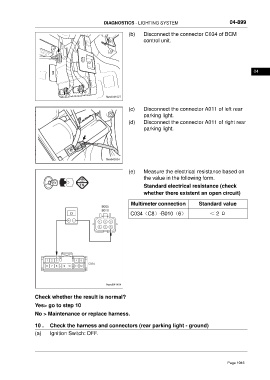

DIAGNOSTICS - LIGHTING SYSTEM 04-899
(b) Disconnect the connector C034 of BCM
control unit.
04
ftwxd041027
(c) Disconnect the connector A011 of left rear
parking light.
(d) Disconnect the connector A011 of right rear
parking light.
(e) Measure the electrical resistance based on
the value in the following form.
Standard electrical resistance (check
whether there existent an open circuit)
Multimeter connection Standard value
C034（C8）-B010（6） ＜ 2 Ω
C034
ftwxd041404
Check whether the result is normal?
Yes> go to step 10
No > Maintenance or replace harness.
10 . Check the harness and connectors (rear parking light - ground)
(a) Ignition Switch: OFF.
