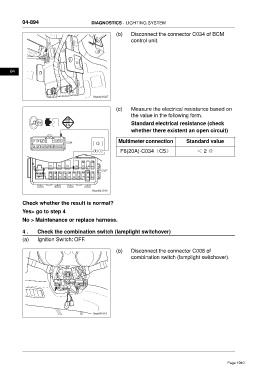

04-894 DIAGNOSTICS - LIGHTING SYSTEM

(b) Disconnect the connector C034 of BCM
control unit.

04

ftwxd041027

(c) Measure the electrical resistance based on
the value in the following form.
Standard electrical resistance (check
whether there existent an open circuit)

1 Ḥ 2 3 4 Ḥ 5 C034 Multimeter connection Standard value
Ḥ
6 Ḥ 7 8 9 10 11 12
F37 10A F6(20A)-C034（C5） ＜ 2 Ω
F19 F21 F18 F20 F22 F23
F36 15A 86
R07
20A 25A 5A
F11 F12 F13 F14 F15 F16 F17
ALT C037

٢ࢤҬࡱB65 15A 10A 15A 7.5A 20A 20A 7.5A 20A 10A 5A
B+ F1 F2 F3 F4 F5 F6 F7 F8 F9 F10
ftwxd041010

Check whether the result is normal?
Yes> go to step 4

No > Maintenance or replace harness.

4 . Check the combination switch (lamplight switchover)
(a) Ignition Switch: OFF.

(b) Disconnect the connector C008 of
combination switch (lamplight switchover).

ftwx641019
