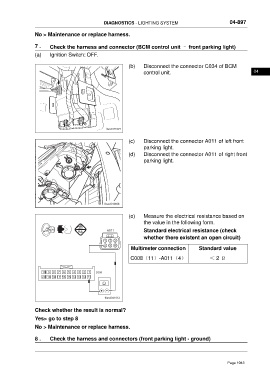

DIAGNOSTICS - LIGHTING SYSTEM 04-897

No > Maintenance or replace harness.

7 . Check the harness and connector (BCM control unit – front parking light)

(a) Ignition Switch: OFF.

(b) Disconnect the connector C034 of BCM
control unit. 04

ftwxd041027

(c) Disconnect the connector A011 of left front
parking light.
(d) Disconnect the connector A011 of right front
parking light.

(e) Measure the electrical resistance based on
the value in the following form.
A011 Standard electrical resistance (check
whether there existent an open circuit)
1 2 3
4 5 6
Multimeter connection Standard value
C008（11）-A011（4） ＜ 2 Ω

10 9 8 7 6 5 4 3 2 1 C008
20 19 18 17 16 15 14 13 12 11

ftwxd041012

Check whether the result is normal?
Yes> go to step 8

No > Maintenance or replace harness.

8 . Check the harness and connectors (front parking light - ground)
