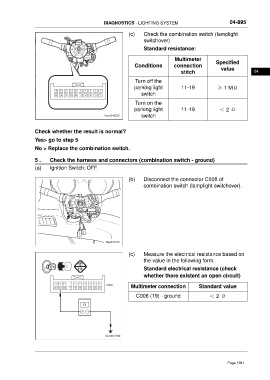

DIAGNOSTICS - LIGHTING SYSTEM 04-895

(c) Check the combination switch (lamplight
switchover)
Standard resistance:

Multimeter
Specified
Conditions connection
value
stitch 04
Turn off the
parking light 11-19 ≥ 1 MΩ
switch
Turn on the
parking light 11-19 ＜ 2 Ω
switch

Check whether the result is normal?
Yes> go to step 5
No > Replace the combination switch.

5 . Check the harness and connectors (combination switch - ground)
(a) Ignition Switch: OFF.

(b) Disconnect the connector C008 of
combination switch (lamplight switchover).

ftwx641019

(c) Measure the electrical resistance based on
the value in the following form.
Standard electrical resistance (check
whether there existent an open circuit)

C008
Multimeter connection Standard value
C008 (19) - ground ＜ 2 Ω

ftwxd041390
