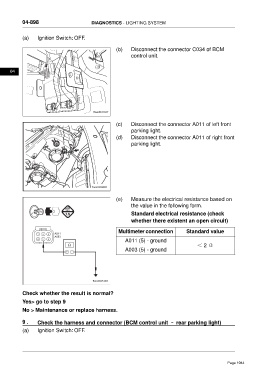

04-898 DIAGNOSTICS - LIGHTING SYSTEM
(a) Ignition Switch: OFF.
(b) Disconnect the connector C034 of BCM
control unit.
04
ftwxd041027
(c) Disconnect the connector A011 of left front
parking light.
(d) Disconnect the connector A011 of right front
parking light.
(e) Measure the electrical resistance based on
the value in the following form.
Standard electrical resistance (check
whether there existent an open circuit)
Multimeter connection Standard value
A011
A003
A011 (5) - ground
＜ 2 Ω
A003 (5) - ground
ftwxd041403
Check whether the result is normal?
Yes> go to step 9
No > Maintenance or replace harness.
9 . Check the harness and connector (BCM control unit – rear parking light)
(a) Ignition Switch: OFF.
