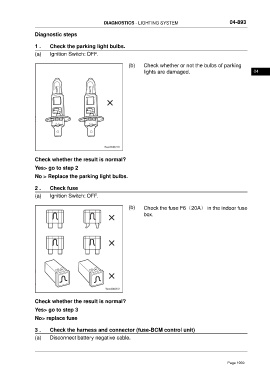

DIAGNOSTICS - LIGHTING SYSTEM 04-893

Diagnostic steps

1 . Check the parking light bulbs.

(a) Ignition Switch: OFF.

(b) Check whether or not the bulbs of parking
lights are damaged. 04

Check whether the result is normal?

Yes> go to step 2
No > Replace the parking light bulbs.

2 . Check fuse
(a) Ignition Switch: OFF.

(b) Check the fuse F6（20A） in the indoor fuse
box.

Check whether the result is normal?

Yes> go to step 3
No> replace fuse

3 . Check the harness and connector (fuse-BCM control unit)
(a) Disconnect battery negative cable.

Page 1039
