P. 1868

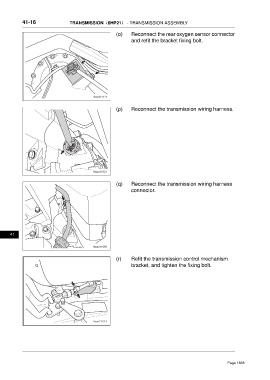

41-16                 TRANSMISSION（6HP21） - TRANSMISSION ASSEMBLY

                                                      (o)    Reconnect the rear oxygen sensor connector
                                                             and refit the bracket fixing bolt.

















                                                      (p)    Reconnect the transmission wiring harness.
















                                           ftwx411021

                                                      (q)    Reconnect the transmission wiring harness
                                                             connector.











      41

                                           ftwx411095

                                                      (r)    Refit the transmission control mechanism
                                                             bracket, and tighten the fixing bolt.
