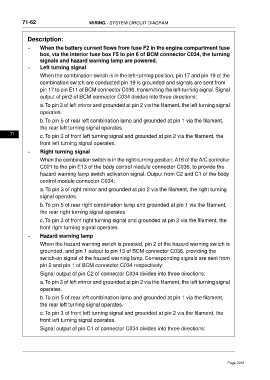

71-62 WIRING - SYSTEM CIRCUIT DIAGRAM

Description:

• When the battery current flows from fuse F2 in the engine compartment fuse
box, via the interior fuse box F5 to pin 6 of BCM connector C034, the turning
signals and hazard warning lamp are powered.

• Left turning signal
When the combination switch is in the left-turning position, pin 17 and pin 19 of the
combination switch are conducted pin 19 is grounded and signals are sent from
pin 17 to pin E11 of BCM connector C036, transmitting the left-turning signal. Signal
output of pin2 of BCM connector C034 divides into three directions:
a.To pin 3 of left mirror and grounded at pin 2 via the filament, the left turning signal
operates.

b. To pin 5 of rear left combination lamp and grounded at pin 1 via the filament,
the rear left turning signal operates.
71
c. To pin 3 of front left turning signal and grounded at pin 2 via the filament, the
front left turning signal operates.
• Right turning signal
When the combination switch is in the right-turning position, A16 of the A/C controller
C021 to the pin E13 of the body control module connector C036, to provide the
hazard warning lamp switch activation signal. Output from C2 and C1 of the body
control module connector C034:

a. To pin 3 of right mirror and grounded at pin 2 via the filament, the right turning
signal operates.
b. To pin 5 of rear right combination lamp and grounded at pin 1 via the filament,
the rear right turning signal operates.

c. To pin 3 of front right turning signal and grounded at pin 2 via the filament, the
front right turning signal operates.
• Hazard warning lamp
When the hazard warning switch is pressed, pin 2 of the hazard warning switch is
grounded, and pin 1 output to pin 13 of BCM connector C036, providing the
switch-on signal of the hazard warning lamp. Corresponding signals are sent from
pin 2 and pin 1 of BCM connector C034 respectively:

Signal output of pin C2 of connector C034 divides into three directions:
a.To pin 3 of left mirror and grounded at pin 2 via the filament, the left turning signal
operates.

b. To pin 5 of rear left combination lamp and grounded at pin 1 via the filament,
the rear left turning signal operates.
c. To pin 3 of front left turning signal and grounded at pin 2 via the filament, the
front left turning signal operates.
Signal output of pin C1 of connector C034 divides into three directions:
