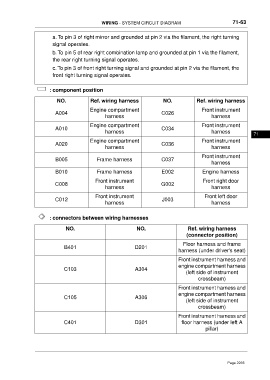

WIRING - SYSTEM CIRCUIT DIAGRAM 71-63

a. To pin 3 of right mirror and grounded at pin 2 via the filament, the right turning
signal operates.
b. To pin 5 of rear right combination lamp and grounded at pin 1 via the filament,
the rear right turning signal operates.

c. To pin 3 of front right turning signal and grounded at pin 2 via the filament, the
front right turning signal operates.

: component position

NO. Ref. wiring harness NO. Ref. wiring harness
Engine compartment Front instrument
A004 C026
harness harness

Engine compartment Front instrument
A010 C034
harness harness
71
Engine compartment Front instrument
A020 C036
harness harness

Front instrument
B005 Frame harness C037
harness
B010 Frame harness E002 Engine harness
Front instrument Front right door
C008 G002
harness harness

Front instrument Front left door
C012 J003
harness harness

: connectors between wiring harnesses

NO. NO. Ref. wiring harness
(connector position)
Floor harness and frame
B401 D201
harness (under driver's seat)

Front instrument harness and
engine compartment harness
C103 A304
(left side of instrument
crossbeam)

Front instrument harness and
engine compartment harness
C105 A306
(left side of instrument
crossbeam)

Front instrument harness and
C401 D301 floor harness (under left A
pillar)
