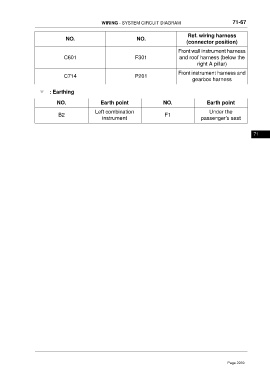

WIRING - SYSTEM CIRCUIT DIAGRAM 71-67
Ref. wiring harness
NO. NO.
(connector position)
Front wall instrument harness
C601 F301 and roof harness (below the
right A pillar)
Front instrument harness and
C714 P201
gearbox harness
: Earthing
NO. Earth point NO. Earth point
Left combination Under the
B2 F1
instrument passenger's seat
71
