P. 2266

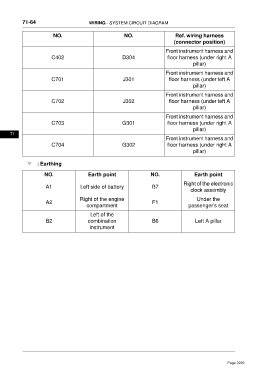

71-64 WIRING - SYSTEM CIRCUIT DIAGRAM
NO. NO. Ref. wiring harness
(connector position)
Front instrument harness and
C402 D304 floor harness (under right A
pillar)
Front instrument harness and
C701 J301 floor harness (under left A
pillar)
Front instrument harness and
C702 J302 floor harness (under left A
pillar)
Front instrument harness and
C703 G301 floor harness (under right A
pillar)
71
Front instrument harness and
C704 G302 floor harness (under right A
pillar)
: Earthing
NO. Earth point NO. Earth point
Right of the electronic
A1 Left side of battery B7
clock assembly
Right of the engine Under the
A2 F1
compartment passenger's seat
Left of the
B2 combination B6 Left A pillar
instrument
