Page 447 - The Veterinary Laboratory and Field Manual 3rd Edition

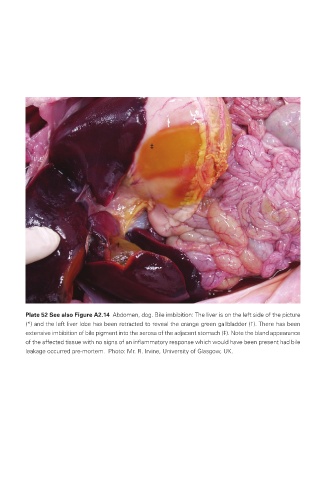

Plate 52 See also Figure A2.14 Abdomen, dog. Bile imbibition: The liver is on the left side of the picture
(*) and the left liver lobe has been retracted to reveal the orange green gallbladder (†). There has been
extensive imbibition of bile pigment into the serosa of the adjacent stomach (‡). Note the bland appearance
of the affected tissue with no signs of an inflammatory response which would have been present had bile
leakage occurred pre-mortem. Photo: Mr. R. Irvine, University of Glasgow, UK.
