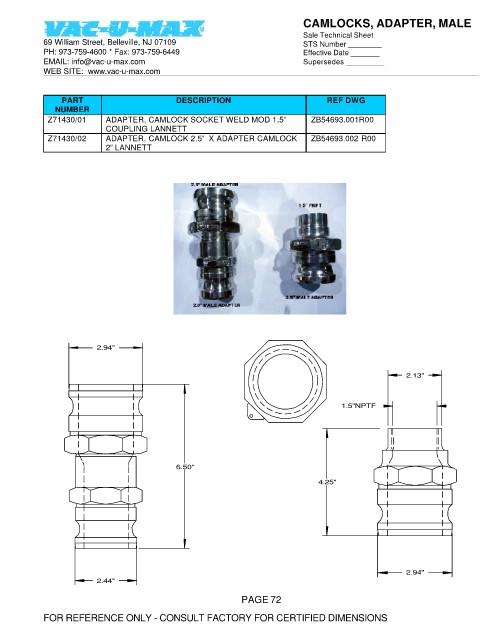

CAMLOCKS, ADAPTER, MALE
Sale Technical Sheet
69 William Street, Belleville, NJ 07109 STS Number ________
PH: 973-759-4600 * Fax: 973-759-6449 Effective Date _______
EMAIL: info@vac-u-max.com Supersedes _________
WEB SITE: www.vac-u-max.com

PART DESCRIPTION REF DWG
NUMBER
Z71430/01 ADAPTER, CAMLOCK SOCKET WELD MOD 1.5” ZB54693.001R00
COUPLING LANNETT
Z71430/02 ADAPTER, CAMLOCK 2.5” X ADAPTER CAMLOCK ZB54693.002 R00
2” LANNETT

2.94"

2.13"

1.5"NPTF

6.50"
4.25"

2.94"
2.44"

PAGE 72

FOR REFERENCE ONLY - CONSULT FACTORY FOR CERTIFIED DIMENSIONS
