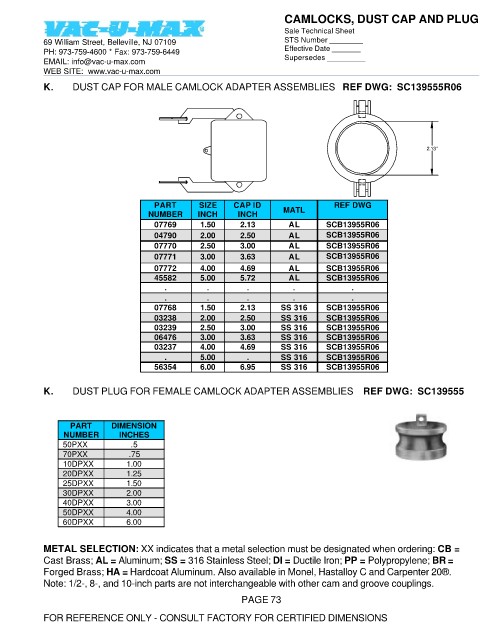

CAMLOCKS, DUST CAP AND PLUG
Sale Technical Sheet
69 William Street, Belleville, NJ 07109 STS Number ________
PH: 973-759-4600 * Fax: 973-759-6449 Effective Date _______
EMAIL: info@vac-u-max.com Supersedes _________
WEB SITE: www.vac-u-max.com

K. DUST CAP FOR MALE CAMLOCK ADAPTER ASSEMBLIES REF DWG: SC139555R06

2.13"

PART SIZE CAP ID REF DWG
NUMBER INCH INCH MATL
07769 1.50 2.13 AL SCB13955R06
04790 2.00 2.50 AL SCB13955R06
07770 2.50 3.00 AL SCB13955R06
07771 3.00 3.63 AL SCB13955R06
07772 4.00 4.69 AL SCB13955R06
45582 5.00 5.72 AL SCB13955R06
. . . . .
. . . . .
07768 1.50 2.13 SS 316 SCB13955R06
03238 2.00 2.50 SS 316 SCB13955R06
03239 2.50 3.00 SS 316 SCB13955R06
06476 3.00 3.63 SS 316 SCB13955R06
03237 4.00 4.69 SS 316 SCB13955R06
. 5.00 . SS 316 SCB13955R06
56354 6.00 6.95 SS 316 SCB13955R06

K. DUST PLUG FOR FEMALE CAMLOCK ADAPTER ASSEMBLIES REF DWG: SC139555

PART DIMENSION
NUMBER INCHES
50PXX .5
70PXX .75
10DPXX 1.00
20DPXX 1.25
25DPXX 1.50
30DPXX 2.00
40DPXX 3.00
50DPXX 4.00
60DPXX 6.00

METAL SELECTION: XX indicates that a metal selection must be designated when ordering: CB =
Cast Brass; AL = Aluminum; SS = 316 Stainless Steel; DI = Ductile Iron; PP = Polypropylene; BR =
Forged Brass; HA = Hardcoat Aluminum. Also available in Monel, Hastalloy C and Carpenter 20®.
Note: 1/2-, 8-, and 10-inch parts are not interchangeable with other cam and groove couplings.

PAGE 73

FOR REFERENCE ONLY - CONSULT FACTORY FOR CERTIFIED DIMENSIONS
