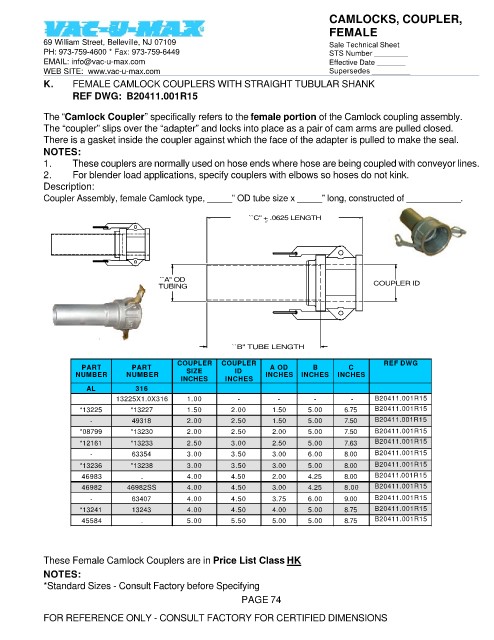

CAMLOCKS, COUPLER,
FEMALE
69 William Street, Belleville, NJ 07109 Sale Technical Sheet
PH: 973-759-4600 * Fax: 973-759-6449 STS Number ________
EMAIL: info@vac-u-max.com Effective Date _______
WEB SITE: www.vac-u-max.com Supersedes _________
K. FEMALE CAMLOCK COUPLERS WITH STRAIGHT TUBULAR SHANK
REF DWG: B20411.001R15

The “Camlock Coupler” specifically refers to the female portion of the Camlock coupling assembly.
The “coupler” slips over the “adapter” and locks into place as a pair of cam arms are pulled closed.
There is a gasket inside the coupler against which the face of the adapter is pulled to make the seal.
NOTES:
1. These couplers are normally used on hose ends where hose are being coupled with conveyor lines.
2. For blender load applications, specify couplers with elbows so hoses do not kink.
Description:
Coupler Assembly, female Camlock type, _____” OD tube size x _____” long, constructed of ___________.

``C" + .0625 LENGTH
-

``A" OD
TUBING COUPLER ID

``B" TUBE LENGTH

COUPLER COUPLER REF DWG
PART PART SIZE ID A OD B C
NUMBER NUMBER INCHES INCHES INCHES
INCHES INCHES
AL 316
13225X1.0X316 1.00 - - - - B20411.001R15
*13225 *13227 1.50 2.00 1.50 5.00 6.75 B20411.001R15
- 49318 2.00 2.50 1.50 5.00 7.50 B20411.001R15
*08799 *13230 2.00 2.50 2.00 5.00 7.50 B20411.001R15
B20411.001R15
*12161 *13233 2.50 3.00 2.50 5.00 7.63
- 63354 3.00 3.50 3.00 6.00 8.00 B20411.001R15
*13236 *13238 3.00 3.50 3.00 5.00 8.00 B20411.001R15
46983 - 4.00 4.50 2.00 4.25 8.00 B20411.001R15
46982 46982SS 4.00 4.50 3.00 4.25 8.00 B20411.001R15
- 63407 4.00 4.50 3.75 6.00 9.00 B20411.001R15
*13241 13243 4.00 4.50 4.00 5.00 8.75 B20411.001R15
45584 - 5.00 5.50 5.00 5.00 8.75 B20411.001R15

These Female Camlock Couplers are in Price List Class HK
NOTES:
*Standard Sizes - Consult Factory before Specifying
PAGE 74

FOR REFERENCE ONLY - CONSULT FACTORY FOR CERTIFIED DIMENSIONS
