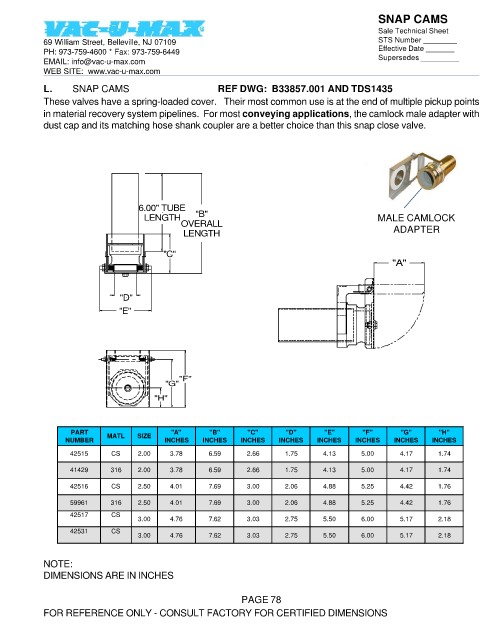

SNAP CAMS
Sale Technical Sheet
69 William Street, Belleville, NJ 07109 STS Number ________
PH: 973-759-4600 * Fax: 973-759-6449 Effective Date _______
EMAIL: info@vac-u-max.com Supersedes _________
WEB SITE: www.vac-u-max.com
L. SNAP CAMS REF DWG: B33857.001 AND TDS1435
These valves have a spring-loaded cover. Their most common use is at the end of multiple pickup points
in material recovery system pipelines. For most conveying applications, the camlock male adapter with
dust cap and its matching hose shank coupler are a better choice than this snap close valve.
6.00" TUBE
LENGTH "B" MALE CAMLOCK
OVERALL
LENGTH ADAPTER
"C"
"A"
"D"
"E"
"F"
"G"
"H"
PART MATL SIZE "A" "B" "C" "D" "E" "F" "G" "H"
NUMBER INCHES INCHES INCHES INCHES INCHES INCHES INCHES INCHES
42515 CS 2.00 3.78 6.59 2.66 1.75 4.13 5.00 4.17 1.74
41429 316 2.00 3.78 6.59 2.66 1.75 4.13 5.00 4.17 1.74
42516 CS 2.50 4.01 7.69 3.00 2.06 4.88 5.25 4.42 1.76
59961 316 2.50 4.01 7.69 3.00 2.06 4.88 5.25 4.42 1.76
42517 CS
3.00 4.76 7.62 3.03 2.75 5.50 6.00 5.17 2.18
42531 CS
3.00 4.76 7.62 3.03 2.75 5.50 6.00 5.17 2.18
NOTE:
DIMENSIONS ARE IN INCHES
PAGE 78
FOR REFERENCE ONLY - CONSULT FACTORY FOR CERTIFIED DIMENSIONS
