CAMLOCKS, COUPLER,
FEMALE
69 William Street, Belleville, NJ 07109 Sale Technical Sheet
PH: 973-759-4600 * Fax: 973-759-6449 STS Number ________
EMAIL: info@vac-u-max.com Effective Date _______
WEB SITE: www.vac-u-max.com Supersedes _________

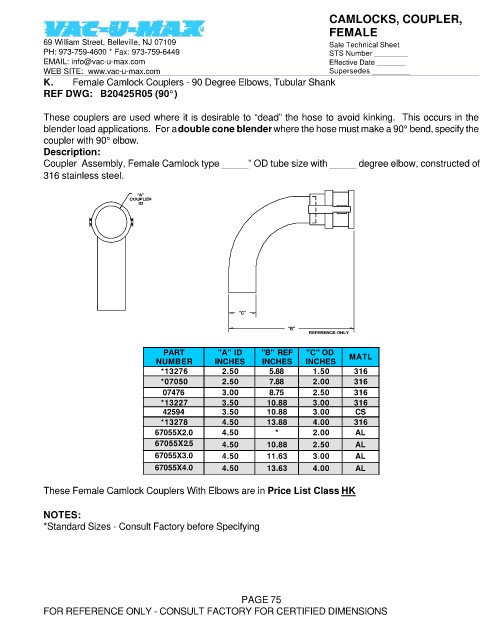

K. Female Camlock Couplers - 90 Degree Elbows, Tubular Shank
REF DWG: B20425R05 (90°)

These couplers are used where it is desirable to “dead” the hose to avoid kinking. This occurs in the
blender load applications. For a double cone blender where the hose must make a 90° bend, specify the
coupler with 90° elbow.
Description:
Coupler Assembly, Female Camlock type _____” OD tube size with _____ degree elbow, constructed of
316 stainless steel.

"A"
COUPLER
ID

"C"
"B"
REFERENCE ONLY

PART "A" ID "B" REF "C" OD MATL
NUMBER INCHES INCHES INCHES
*13276 2.50 5.88 1.50 316
*07050 2.50 7.88 2.00 316
07476 3.00 8.75 2.50 316
*13227 3.50 10.88 3.00 316
42594 3.50 10.88 3.00 CS
*13278 4.50 13.88 4.00 316
67055X2.0 4.50 * 2.00 AL
67055X2.5 4.50 10.88 2.50 AL
67055X3.0 4.50 11.63 3.00 AL
67055X4.0 4.50 13.63 4.00 AL

These Female Camlock Couplers With Elbows are in Price List Class HK

NOTES:
*Standard Sizes - Consult Factory before Specifying

PAGE 75
FOR REFERENCE ONLY - CONSULT FACTORY FOR CERTIFIED DIMENSIONS
