CAMLOCKS, COUPLER,
FEMALE
69 William Street, Belleville, NJ 07109 Sale Technical Sheet
PH: 973-759-4600 * Fax: 973-759-6449 STS Number ________
EMAIL: info@vac-u-max.com Effective Date _______
WEB SITE: www.vac-u-max.com Supersedes _________

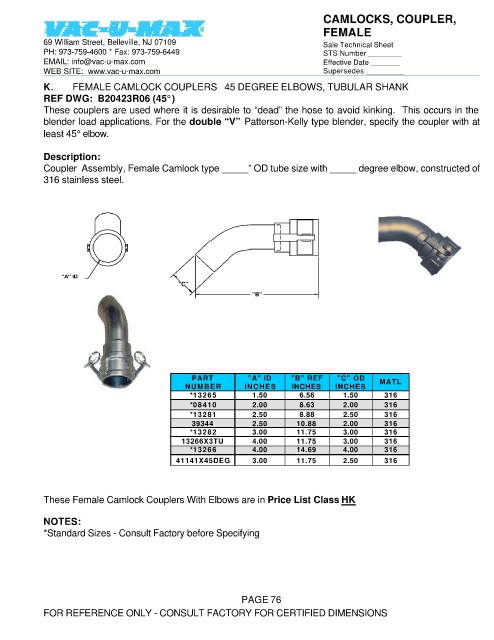

K. FEMALE CAMLOCK COUPLERS 45 DEGREE ELBOWS, TUBULAR SHANK
REF DWG: B20423R06 (45°)
These couplers are used where it is desirable to “dead” the hose to avoid kinking. This occurs in the
blender load applications. For the double “V” Patterson-Kelly type blender, specify the coupler with at
least 45° elbow.

Description:
Coupler Assembly, Female Camlock type _____” OD tube size with _____ degree elbow, constructed of
316 stainless steel.

"A" ID
"C"
"B"

PART "A" ID "B" REF "C" OD MATL
NUMBER INCHES INCHES INCHES
*13265 1.50 6.56 1.50 316
*08410 2.00 8.63 2.00 316
*13281 2.50 8.88 2.50 316
39344 2.50 10.88 2.00 316
*13282 3.00 11.75 3.00 316
13266X3TU 4.00 11.75 3.00 316
*13266 4.00 14.69 4.00 316
41141X45DEG 3.00 11.75 2.50 316

These Female Camlock Couplers With Elbows are in Price List Class HK

NOTES:
*Standard Sizes - Consult Factory before Specifying

PAGE 76
FOR REFERENCE ONLY - CONSULT FACTORY FOR CERTIFIED DIMENSIONS
