WALL MOUNTED ASSEMBLY
CAMLOCKS, ADAPTER, MALE
69 William Street, Belleville, NJ 07109 Sale Technical Sheet
PH: 973-759-4600 * Fax: 973-759-6449
EMAIL: info@vac-u-max.com
WEB SITE: www.vac-u-max.com

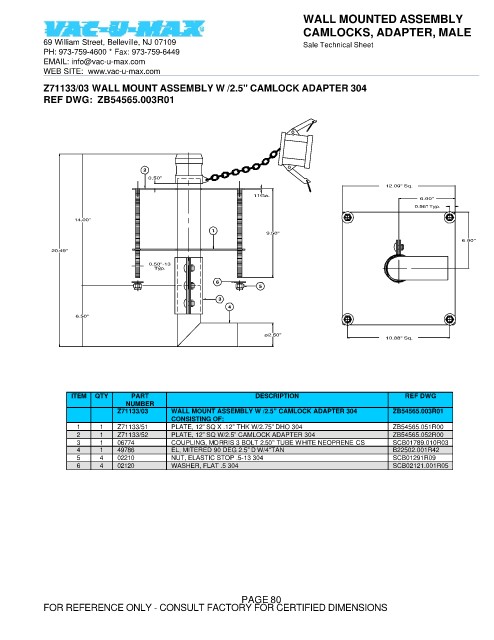

Z71133/03 WALL MOUNT ASSEMBLY W /2.5" CAMLOCK ADAPTER 304
REF DWG: ZB54565.003R01

2
0.50"
12.00" Sq.
11Ga.
6.00"
0.56" Typ.
14.00"
1
9.50"
6.00"
20.49"
0.50"-13
Typ.
6
5
3
4
6.50"

ø2.50"
10.88" Sq.

ITEM QTY PART DESCRIPTION REF DWG
NUMBER
Z71133/03 WALL MOUNT ASSEMBLY W /2.5” CAMLOCK ADAPTER 304 ZB54565.003R01
CONSISTING OF:
1 1 Z71133/51 PLATE, 12” SQ X .12” THK W/2.75” DHO 304 ZB54565.051R00
2 1 Z71133/52 PLATE, 12” SQ W/2.5” CAMLOCK ADAPTER 304 ZB54565.052R00
3 1 06774 COUPLING, MORRIS 3 BOLT 2.50” TUBE WHITE NEOPRENE CS SCB01789.010R03
4 1 49786 EL, MITERED 90 DEG 2.5” D W/4"TAN B22502.001R42
5 4 02210 NUT, ELASTIC STOP .5-13 304 SCB01291R09
6 4 02120 WASHER, FLAT .5 304 SCB02121.001R05

PAGE 80
FOR REFERENCE ONLY - CONSULT FACTORY FOR CERTIFIED DIMENSIONS
