VALVE, SANITARY
Sale Technical Sheet
69 William Street, Belleville, NJ 07109 STS Number ________
PH: 973-759-4600 * Fax: 973-759-6449 Effective Date _______
EMAIL: info@vac-u-max.com Supersedes _________
WEB SITE: www.vac-u-max.com

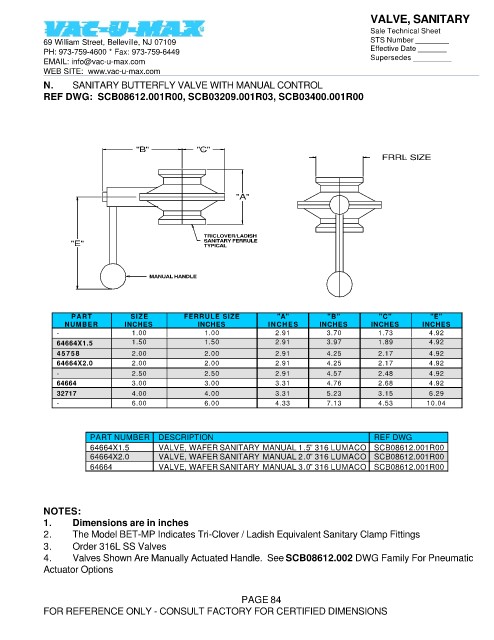

N. SANITARY BUTTERFLY VALVE WITH MANUAL CONTROL
REF DWG: SCB08612.001R00, SCB03209.001R03, SCB03400.001R00

"B" "C"
FRRL SIZE

"A"

TRICLOVER/LADISH
"E" SANITARY FERRULE
TYPICAL

MANUAL HANDLE

PART SIZE FERRULE SIZE "A" "B" "C" "E"
NUMBER INCHES INCHES INCHES INCHES INCHES INCHES
- 1.00 1.00 2.91 3.70 1.73 4.92
64664X1.5 1.50 1.50 2.91 3.97 1.89 4.92
45758 2.00 2.00 2.91 4.25 2.17 4.92
64664X2.0 2.00 2.00 2.91 4.25 2.17 4.92
- 2.50 2.50 2.91 4.57 2.48 4.92
64664 3.00 3.00 3.31 4.76 2.68 4.92
32717 4.00 4.00 3.31 5.23 3.15 6.29
- 6.00 6.00 4.33 7.13 4.53 10.04

PART NUMBER DESCRIPTION REF DWG
64664X1.5 VALVE, WAFER SANITARY MANUAL 1.5” 316 LUMACO SCB08612.001R00
64664X2.0 VALVE, WAFER SANITARY MANUAL 2.0” 316 LUMACO SCB08612.001R00
64664 VALVE, WAFER SANITARY MANUAL 3.0” 316 LUMACO SCB08612.001R00

NOTES:
1. Dimensions are in inches
2. The Model BET-MP Indicates Tri-Clover / Ladish Equivalent Sanitary Clamp Fittings
3. Order 316L SS Valves
4. Valves Shown Are Manually Actuated Handle. See SCB08612.002 DWG Family For Pneumatic
Actuator Options

PAGE 84
FOR REFERENCE ONLY - CONSULT FACTORY FOR CERTIFIED DIMENSIONS
