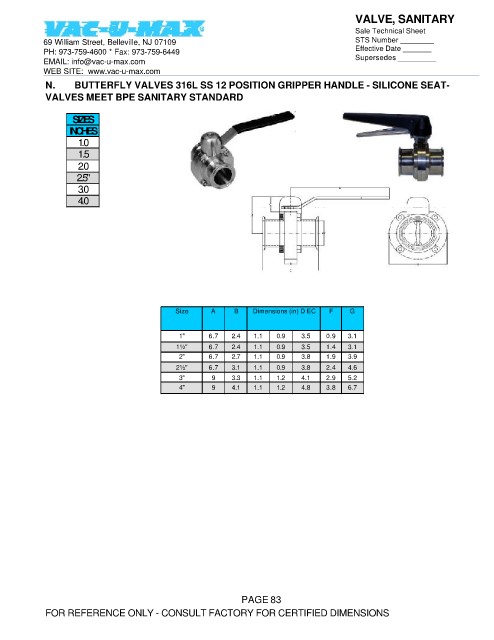

VALVE, SANITARY
Sale Technical Sheet
69 William Street, Belleville, NJ 07109 STS Number ________
PH: 973-759-4600 * Fax: 973-759-6449 Effective Date _______
EMAIL: info@vac-u-max.com Supersedes _________
WEB SITE: www.vac-u-max.com
N. BUTTERFLY VALVES 316L SS 12 POSITION GRIPPER HANDLE - SILICONE SEAT-
VALVES MEET BPE SANITARY STANDARD
SIZES
INCHES
1.0
1.5
2.0
2.5"
3.0
4.0
Size A B Dimensions (in) D EC F G
1" 6.7 2.4 1.1 0.9 3.5 0.9 3.1
1½" 6.7 2.4 1.1 0.9 3.5 1.4 3.1
2" 6.7 2.7 1.1 0.9 3.8 1.9 3.9
2½" 6.7 3.1 1.1 0.9 3.8 2.4 4.6
3" 9 3.3 1.1 1.2 4.1 2.9 5.2
4" 9 4.1 1.1 1.2 4.8 3.8 6.7
PAGE 83
FOR REFERENCE ONLY - CONSULT FACTORY FOR CERTIFIED DIMENSIONS
