VALVE, SANITARY
Sale Technical Sheet
69 William Street, Belleville, NJ 07109 STS Number ________
PH: 973-759-4600 * Fax: 973-759-6449 Effective Date _______
EMAIL: info@vac-u-max.com Supersedes _________
WEB SITE: www.vac-u-max.com

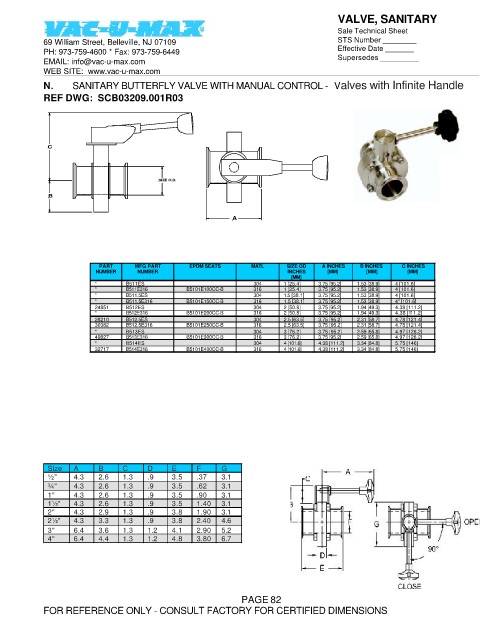

N. SANITARY BUTTERFLY VALVE WITH MANUAL CONTROL - Valves with Infinite Handle
REF DWG: SCB03209.001R03

C

SIZE O.D.
B

A

PART MFG PART EPDM SEATS MATL SIZE OD A INCHES B INCHES C INCHES
NUMBER NUMBER INCHES [MM] [MM] [MM]
[MM]
* B511ES 304 1 [25.4] 3.75 [95.2] 1.53 [38.9] 4 [101.6]
* B511E316 B5101E100CC-B 316 1 [25.4] 3.75 [95.2] 1.53 [38.9] 4 [101.6]
* B511.5ES 304 1.5 [38.1] 3.75 [95.2] 1.53 [38.9] 4 [101.6]
* B511.5E316 B5101E150CC-B 316 1.5 [38.1] 3.75 [95.2] 1.53 [38.9] 4" [101.6]
24851 B512ES 304 2 [50.8] 3.75 [95.2] 1.94 [49.3] 4.38 [111.2]
* B512E316 B5101E200CC-B 316 2 [50.8] 3.75 [95.2] 1.94 [49.3] 4.38 [111.2]
28210 B512.5ES 304 2.5 [63.5] 3.75 [95.2] 2.31 [58.7] 4.78 [121.4]
30382 B512.5E316 B5101E250CC-B 316 2.5 [63.5] 3.75 [95.2] 2.31 [58.7] 4.78 [121.4]
* B513ES 304 3 [76.2] 3.75 [95.2] 2.59 [65.8] 4.97 [126.2]
49827 B513E316 B5101E300CC-B 316 3 [76.2] 3.75 [95.2] 2.59 [65.8] 4.97 [126.2]
* B514ES 304 4 [101.6] 4.38 [111.2] 3.34 [84.8] 5.75 [146]
32717 B514E316 B5101E400CC-B 316 4 [101.6] 4.38 [111.2] 3.34 [84.8] 5.75 [146]

Size A B C D E F G
½" 4.3 2.6 1.3 .9 3.5 .37 3.1
¾" 4.3 2.6 1.3 .9 3.5 .62 3.1
1" 4.3 2.6 1.3 .9 3.5 .90 3.1
1½" 4.3 2.6 1.3 .9 3.5 1.40 3.1
2" 4.3 2.9 1.3 .9 3.8 1.90 3.1
2½" 4.3 3.3 1.3 .9 3.8 2.40 4.6
3" 6.4 3.6 1.3 1.2 4.1 2.90 5.2
4" 6.4 4.4 1.3 1.2 4.8 3.80 6.7

PAGE 82
FOR REFERENCE ONLY - CONSULT FACTORY FOR CERTIFIED DIMENSIONS
