VALVE, SANITARY
Sale Technical Sheet
69 William Street, Belleville, NJ 07109 STS Number ________
PH: 973-759-4600 * Fax: 973-759-6449 Effective Date _______
EMAIL: info@vac-u-max.com Supersedes _________
WEB SITE: www.vac-u-max.com

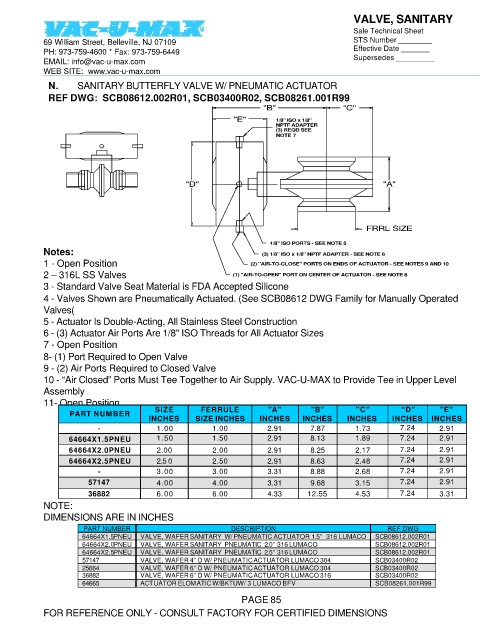

N. SANITARY BUTTERFLY VALVE W/ PNEUMATIC ACTUATOR
REF DWG: SCB08612.002R01, SCB03400R02, SCB08261.001R99
"B" "C"
"E" 1/8" ISO x 1/8"
NPTF ADAPTER
(3) REQD SEE
NOTE 7

"D" "A"

FRRL SIZE
1/8" ISO PORTS - SEE NOTE 5
Notes: (3) 1/8" ISO x 1/8" NPTF ADAPTER - SEE NOTE 6
1 - Open Position (2) "AIR-TO-CLOSE" PORTS ON ENDS OF ACTUATOR - SEE NOTES 9 AND 10
2 – 316L SS Valves (1) "AIR-TO-OPEN" PORT ON CENTER OF ACTUATOR - SEE NOTE 8
3 - Standard Valve Seat Material is FDA Accepted Silicone
4 - Valves Shown are Pneumatically Actuated. (See SCB08612 DWG Family for Manually Operated
Valves(
5 - Actuator Is Double-Acting, All Stainless Steel Construction
6 - (3) Actuator Air Ports Are 1/8" ISO Threads for All Actuator Sizes
7 - Open Position
8- (1) Port Required to Open Valve
9 - (2) Air Ports Required to Closed Valve
10 - “Air Closed” Ports Must Tee Together to Air Supply. VAC-U-MAX to Provide Tee in Upper Level
Assembly
11- Open Position
PART NUMBER SIZE FERRULE "A" "B" "C" “D” "E"
INCHES SIZE INCHES INCHES INCHES INCHES INCHES INCHES
- 1.00 1.00 2.91 7.87 1.73 7.24 2.91
64664X1.5PNEU 1.50 1.50 2.91 8.13 1.89 7.24 2.91
64664X2.0PNEU 2.00 2.00 2.91 8.25 2.17 7.24 2.91
64664X2.5PNEU 2.5 0 2.50 2.91 8.63 2.48 7.24 2.91
- 3.00 3.00 3.31 8.88 2.68 7.24 2.91
57147 4.00 4.00 3.31 9.68 3.15 7.24 2.91
36882 6.00 6.00 4.33 12.55 4.53 7.24 3.31

NOTE:
DIMENSIONS ARE IN INCHES
PART NUMBER DESCRIPTION REF DWG
64664X1.5PNEU VALVE, WAFER SANITARY W/ PNEUMATIC ACTUATOR 1.5” 316 LUMACO SCB08612.002R01
64664X2.0PNEU VALVE, WAFER SANITARY PNEUMATIC 2.0” 316 LUMACO SCB08612.002R01
64664X2.5PNEU VALVE, WAFER SANITARY PNEUMATIC 2.5” 316 LUMACO SCB08612.002R01
57147 VALVE, WAFER 4” D W/ PNEUMATIC ACTUATOR LUMACO 304 SCB03400R02
25664 VALVE, WAFER 6” D W/ PNEUMATIC ACTUATOR LUMACO 304 SCB03400R02
36882 VALVE, WAFER 6” D W/ PNEUMATIC ACTUATOR LUMACO 316 SCB03400R02
64665 ACTUATOR ELOMATIC W/BKTUW/ 3 LUMACO BFV SCB08261.001R99

PAGE 85
FOR REFERENCE ONLY - CONSULT FACTORY FOR CERTIFIED DIMENSIONS
