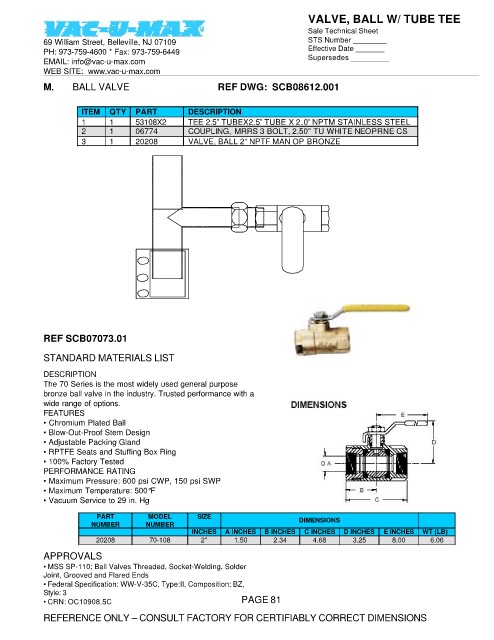

VALVE, BALL W/ TUBE TEE
Sale Technical Sheet
69 William Street, Belleville, NJ 07109 STS Number ________
PH: 973-759-4600 * Fax: 973-759-6449 Effective Date _______
EMAIL: info@vac-u-max.com Supersedes _________
WEB SITE: www.vac-u-max.com

M. BALL VALVE REF DWG: SCB08612.001

ITEM QTY PART DESCRIPTION
1 1 53108X2 TEE 2.5” TUBEX2.5” TUBE X 2.0” NPTM STAINLESS STEEL
2 1 06774 COUPLING, MRRS 3 BOLT, 2.50” TU WHITE NEOPRNE CS
3 1 20208 VALVE, BALL 2” NPTF MAN OP BRONZE

REF SCB07073.01
STANDARD MATERIALS LIST

DESCRIPTION
The 70 Series is the most widely used general purpose
bronze ball valve in the industry. Trusted performance with a
wide range of options.
FEATURES
• Chromium Plated Ball
• Blow-Out-Proof Stem Design
• Adjustable Packing Gland
• RPTFE Seats and Stuffing Box Ring
• 100% Factory Tested
PERFORMANCE RATING
• Maximum Pressure: 600 psi CWP, 150 psi SWP
• Maximum Temperature: 500°F
• Vacuum Service to 29 in. Hg
PART MODEL SIZE DIMENSIONS
NUMBER NUMBER
INCHES A INCHES B INCHES C INCHES D INCHES E INCHES WT (LB)
20208 70-108 2" 1.50 2.34 4.68 3.25 8.00 6.06

APPROVALS
• MSS SP-110; Ball Valves Threaded, Socket-Welding, Solder
Joint, Grooved and Flared Ends
• Federal Specification: WW-V-35C, Type:II, Composition: BZ,
Style: 3
• CRN: OC10908.5C PAGE 81

REFERENCE ONLY – CONSULT FACTORY FOR CERTIFIABLY CORRECT DIMENSIONS
