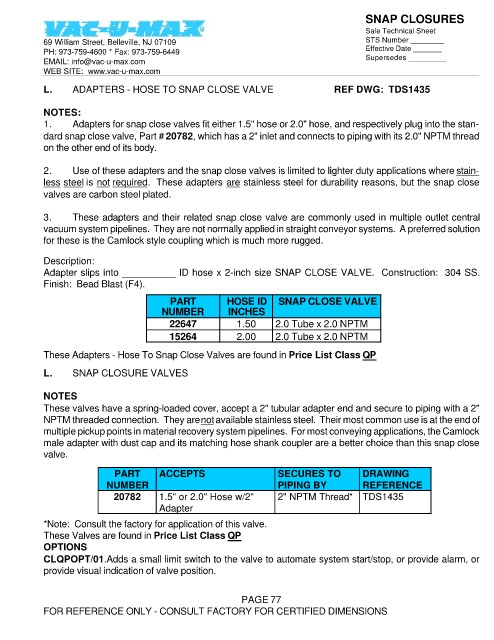

SNAP CLOSURES
Sale Technical Sheet
69 William Street, Belleville, NJ 07109 STS Number ________
PH: 973-759-4600 * Fax: 973-759-6449 Effective Date _______
EMAIL: info@vac-u-max.com Supersedes _________
WEB SITE: www.vac-u-max.com

L. ADAPTERS - HOSE TO SNAP CLOSE VALVE REF DWG: TDS1435

NOTES:
1. Adapters for snap close valves fit either 1.5" hose or 2.0" hose, and respectively plug into the stan-
dard snap close valve, Part # 20782, which has a 2" inlet and connects to piping with its 2.0" NPTM thread
on the other end of its body.

2. Use of these adapters and the snap close valves is limited to lighter duty applications where stain-
less steel is not required. These adapters are stainless steel for durability reasons, but the snap close
valves are carbon steel plated.

3. These adapters and their related snap close valve are commonly used in multiple outlet central
vacuum system pipelines. They are not normally applied in straight conveyor systems. A preferred solution
for these is the Camlock style coupling which is much more rugged.

Description:
Adapter slips into __________ ID hose x 2-inch size SNAP CLOSE VALVE. Construction: 304 SS.
Finish: Bead Blast (F4).

PART HOSE ID SNAP CLOSE VALVE
NUMBER INCHES
22647 1.50 2.0 Tube x 2.0 NPTM
15264 2.00 2.0 Tube x 2.0 NPTM

These Adapters - Hose To Snap Close Valves are found in Price List Class QP

L. SNAP CLOSURE VALVES

NOTES
These valves have a spring-loaded cover, accept a 2" tubular adapter end and secure to piping with a 2"
NPTM threaded connection. They are not available stainless steel. Their most common use is at the end of
multiple pickup points in material recovery system pipelines. For most conveying applications, the Camlock
male adapter with dust cap and its matching hose shank coupler are a better choice than this snap close
valve.

PART ACCEPTS SECURES TO DRAWING
NUMBER PIPING BY REFERENCE
20782 1.5" or 2.0" Hose w/2" 2" NPTM Thread* TDS1435
Adapter

*Note: Consult the factory for application of this valve.
These Valves are found in Price List Class QP
OPTIONS
CLQPOPT/01.Adds a small limit switch to the valve to automate system start/stop, or provide alarm, or
provide visual indication of valve position.

PAGE 77
FOR REFERENCE ONLY - CONSULT FACTORY FOR CERTIFIED DIMENSIONS
